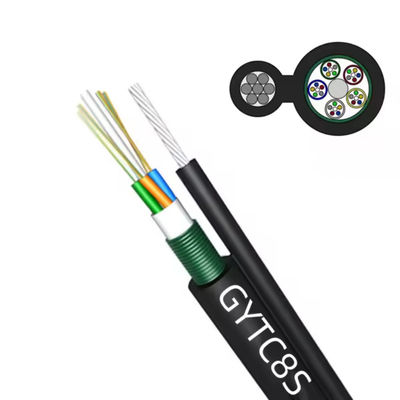

24 Core Figure 8 GYTC8S Self-Supporting Armored Outdoor Fiber Optic Cable
Figure 8 self supporting structure with stranded steel messenger for high tensile strength
Armored cable design with corrugated steel tape for excellent crush and impact resistance
Gel filled loose tube construction ensures stable fiber protection
Steel wire central strength member improves mechanical performance
Fully filled cable core and moisture blocking materials provide reliable water resistance
Suitable for long term outdoor and harsh environment installation
Self supporting aerial installation without additional messenger wire
Overhead communication lines in telecom and access networks
Outdoor backbone and distribution fiber networks
Areas requiring high mechanical strength and reliable waterproof performance
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Model | G.652D | ||
| Design(Strength Member+Tube&Filler) | 1+5 | ||
| CentralStrengthMember | Material | Steel Wire | |
| Diameter(+0.05)mm | 1.5 | ||
| LooseTube | Material | PBT | |
| Diameter(+0.06)mm | 2 | ||
| Thickness(+0.03)mm | 0.32 | ||
| TheMax.CoreNO./Tube | 12 | ||
| Filler Rope | Material | LDPE | |
| Color | White | ||
| Diameter(+0.06)mm | 2.1 | ||
| Strand Strength Member | Material | Galvanized Steel | |
| Type | φ0.9x3 | ||
| Armor layer | Material | Steel Tape | |
| OuterSheath① | Material | MDPE | |
| Thickness(+0.03)mm | 1. | ||
| OuterSheath① | Material | MDPE | |
| Thickness(40.03)mm | 1.8 | ||
| CableDiameter(土0.2)mm | 9.5*17.8(nominal) | ||
| CableWeight(+10)kg/km | 160(nominal) | ||
| Min.installation/N | 1500 | ||
| Attenuation | 1310nm | 0.35dB/KM | |
| 1550nm | 0.21dB/KM | ||
| Min.bendingradius | Without Tension | 10.0*Cableφ | |
| Under Maximum Tension | 20.0xCableφ | ||

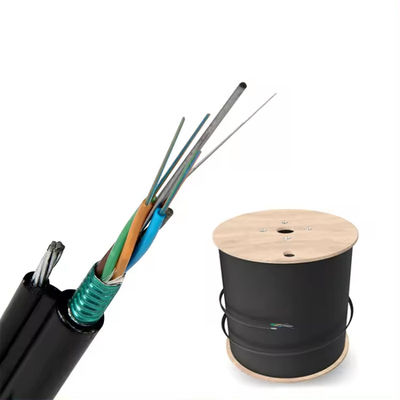

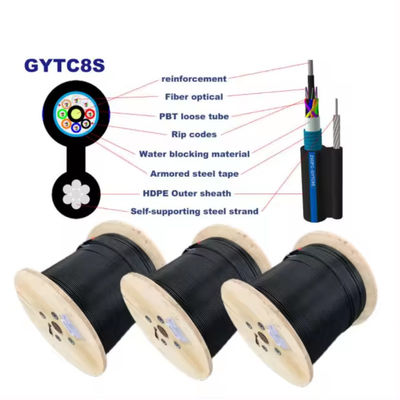

Picture Show
FAQ
1. Are you a real manufacturer?
Yes. We are a professional manufacturer with over 10 years of industry experience.
2. Do you accept small or trial orders?
Yes. Small orders are accepted to support new projects and long term cooperation.
3. What is the warranty period for your fiber optic cables?
The warranty period is 25 years.
4. How long is the delivery time?
Delivery is usually completed within 3 to 5 working days.
5. What is your annual production capacity?
Our annual capacity includes
Outdoor and indoor fiber optic cables up to 6,000,000 km
FTTH FTTX and FTTA cables up to 6,000,000 km
Patch cords and pigtails up to 12,400,000 pieces
6. Do you offer customized products and logo services?
Yes. OEM and ODM services are available. Custom designs and drawings are welcome.
