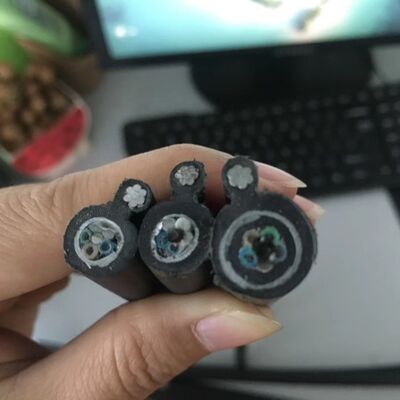

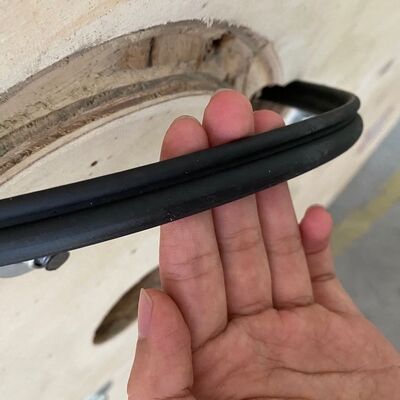

GYTC8S Outdoor Figure 8 Aerial Fiber Optic Cable Steel Wire Armored Self Supporting Communication Cable
Product Introduction
GYTC8S is a self-supporting outdoor aerial fiber optic cable designed with a stranded loose tube structure supporting 1–144 fibers. It integrates a steel messenger wire and corrugated steel tape armor for strong mechanical protection and stable long-distance transmission. Water-blocking materials and a durable PE sheath ensure reliable performance in outdoor environments.
Key Features
• Figure-8 self-supporting design with steel messenger wire
• Corrugated steel tape armor for crush and impact resistance
• Central steel strength member for high tensile strength
• Water-blocking structure for enhanced moisture protection
• Durable PE outer sheath for outdoor reliability
Applications
• Outdoor aerial fiber optic installation
• Long-distance telecommunication networks
• LAN and access network deployment
• CATV and computer communication systems
| Model | fiber cores | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static /Dynamic mm |
| GYTC8S | 12-288 | 7-20mm | 70-300 | 3500/7000N | 300/1000 | 15D/30D |
Specification:
| item | value |
| Model Number | GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | Multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | Steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
