| Số lượng đặt hàng tối thiểu : | 1 km | chi tiết đóng gói : | Trống gỗ |
|---|---|---|---|
| Thời gian giao hàng : | 2-5 ngày | Điều khoản thanh toán : | L/C, D/A, D/P, T/T, Western Union, Moneygram |
| Khả năng cung cấp : | 8000 km mỗi tháng |
| Nguồn gốc: | Quảng Đông, Trung Quốc | Hàng hiệu: | JQ/OEM/Customize |
|---|---|---|---|
| Chứng nhận: | CE/ISO9001/RoHS/FCC | Số mô hình: | GYTC8S |
|
Thông tin chi tiết |
|||
| Số mô hình: | GYTC8S-48CORE | Kiểu: | Cáp quang ngoài trời |
|---|---|---|---|
| Nguồn gốc: | Quảng Đông, Trung Quốc | Loại sợi: | G652D Chế độ đơn hoặc là yêu cầu của bạn |
| Màu sắc: | tùy chỉnh | Áo khoác: | PE, MDPE, LSZH, PVC, HDPE |
| Số dây dẫn: | 1 hoặc 2 hoặc 4 hoặc 6 hoặc 8 hoặc 12 | ||
| Làm nổi bật: | Figure 8 fiber optic cable 48 core,Outdoor singlemode fiber cable G652D,96 core figure 8 optical cable |
||
Mô tả sản phẩm

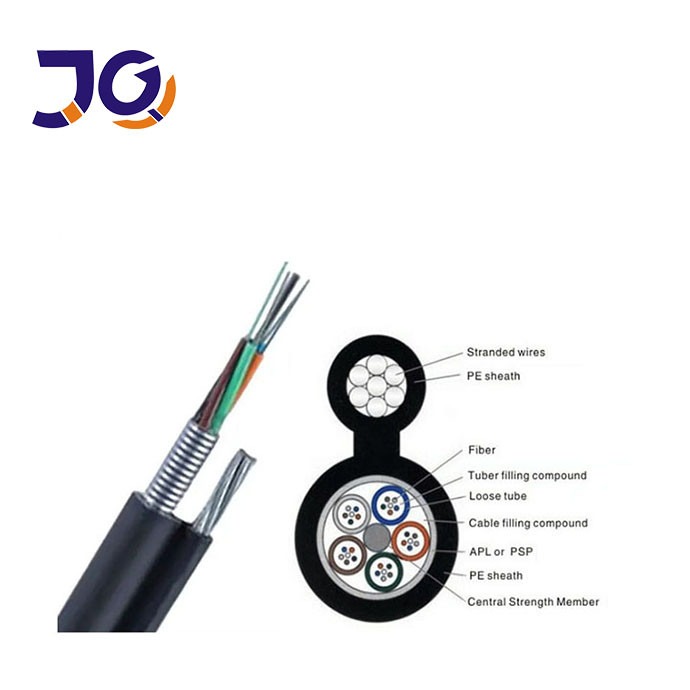

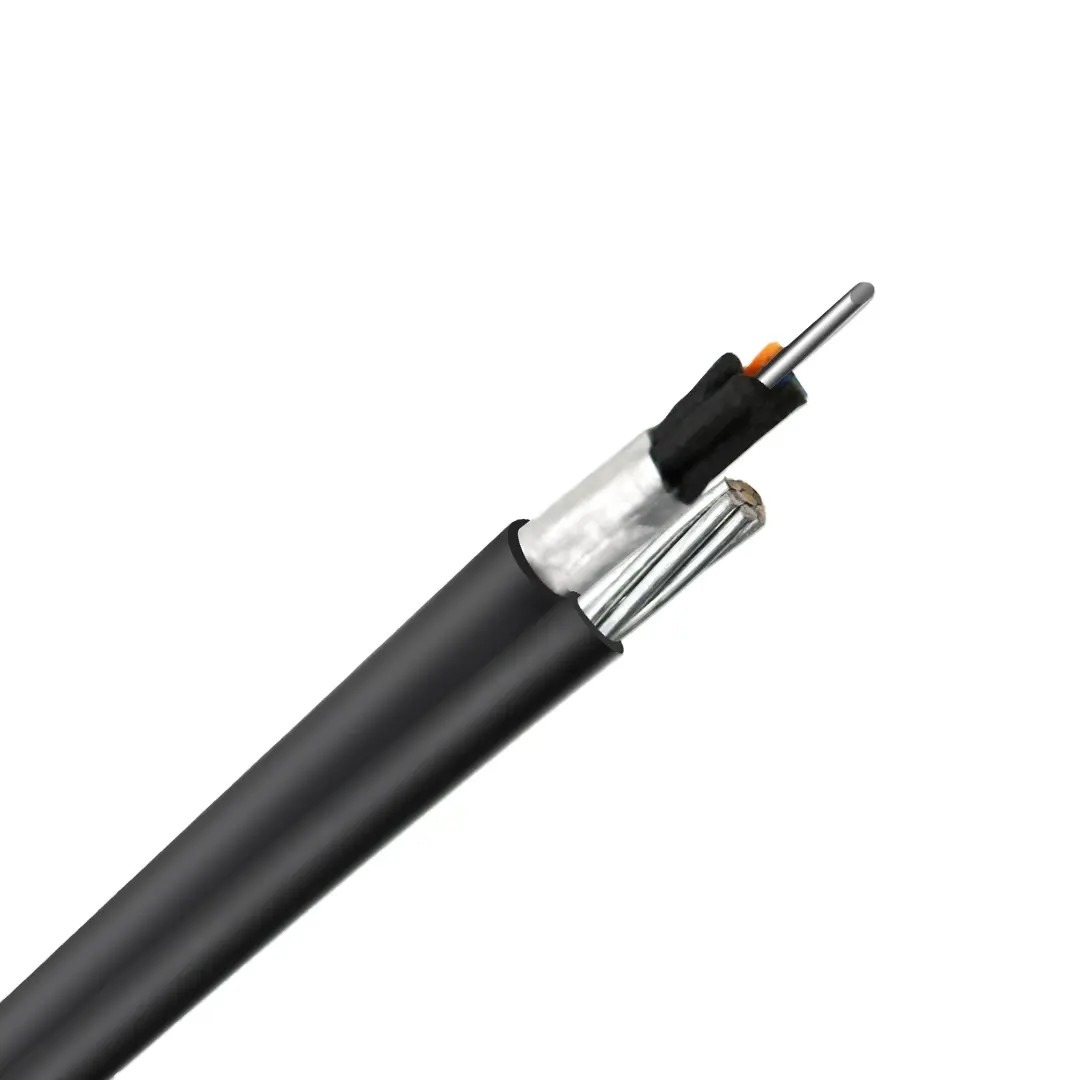

GYTC8S Optical Fiber Cable
A self-supporting aerial cable with 1–144 fibers, stranded loose tube design, steel messenger, corrugated steel armor, and UV-resistant PE sheath. Water-blocking gel protects fibers, while the central steel member ensures high tensile strength. Ideal for long-distance telecom, FTTH, LAN/WAN, and power line communication.
Applications:
Outdoor aerial and long-span installations
Backbone and metro network transmission
LAN, WAN, and data center connectivity
FTTH/FTTx subscriber access
Junction and distribution networks
CATV, broadband, and computer networks
Product Parameters:
| Model | fiber cores | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static /Dynamic mm |
| GYTC8S | 12-288 | 7-20mm | 70-300 | 3500/7000N | 300/1000 | 15D/30D |
Specification:
| item | value |
| Model Number | GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | Multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | Steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Certification:
1. Who are we?
We are a professional fiber optic cable manufacturer based in Guangdong, China, founded in 2017. Our main markets include Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). We have a skilled team of 11–50 employees.
2. How do we ensure product quality?
Pre-production samples are provided for confirmation before mass production
100% final inspection is carried out prior to shipment
3. What products do we offer?
Outdoor/indoor fiber optic cables, FTTH drop cables, communication cables, and related accessories.
4. What services are available?
Delivery terms: FOB, EXW
Payment methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
Supported currencies: USD, CNY
Supported languages: English, Chinese
5. What is the minimum order quantity (MOQ)?
Our standard MOQ is 1KM, trial orders are welcome.
6. Can I request samples?
Yes, we provide free samples; customers only need to cover the freight cost.
7. Do you offer OEM/ODM service?
Yes, our engineering team supports OEM/ODM customization to meet your project needs.
8. What is your delivery time?
Normally 3–7 working days after order confirmation, depending on quantity.
