All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket

Số lượng đặt hàng tối thiểu : 1 km chi tiết đóng gói : Trống gỗ
Thời gian giao hàng : 2-5 ngày Điều khoản thanh toán : L/C, D/A, D/P, T/T, Western Union, Moneygram
Khả năng cung cấp : 8000 km mỗi tháng
Nguồn gốc: Quảng Đông Trung Quốc Hàng hiệu: JQ or OEM/Customize
Chứng nhận: CE/ISO9001/RoHS/FCC Số mô hình: ADSS-4C/12FC/24C/48C/96C/144C

Thông tin chi tiết

Số mô hình: ADSS -144B1 Kiểu: Cáp quang ngoài trời
Nguồn gốc: Quảng Đông, Trung Quốc Số lượng dây dẫn: ≥ 10
Loại sợi: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 Chiều dài: Theo yêu cầu
Màu sắc: Đen/Tùy chỉnh Thành viên sức mạnh: Sợi Aramid
Áo khoác:: Vỏ PE kép Vật liệu ống lỏng lẻo: PBT
Vỏ bọc bên ngoài: PE/MDPE/HDPE hoặc là yêu cầu của bạn Bưu kiện: Trống gỗ/tùy chỉnh
Ứng dụng: trên không, trên cao OEM: Có sẵn
Nhịp: 50m-1000m Chứng nhận: CE/ROHS/ISO9001
Thiệt giảm sợi: ≤0,4dB/km Số sức mạnh: FRP, Kevlar Aramid sợi
Đóng gói: Trống carton Mô hình cáp: Áo khoác đôi/áo khoác đơn
Nhiệt độ: -40 đến +70 Tài liệu thành viên sức mạnh: Sợi FRP/Aramid
Độ dài trống: 5km/trống Số lượng dây dẫn: 12core
Vật mẫu: Miễn phí Vật liệu vỏ bọc: PE hoặc tùy chỉnh/hdpe/mdpe
Hoạt động temp: -20 ~+60 Vỏ cáp: Thể dục
Máy đo ống: PBT Thành viên sức mạnh: FRP, Kevlar Aramid sợi
Cốt lõi: 48/96/144 lõi
Làm nổi bật:

ADSS fiber optic cable 96 core

,

outdoor aerial ADSS cable

,

non-armored double jacket fiber optic cable

Mô tả sản phẩm

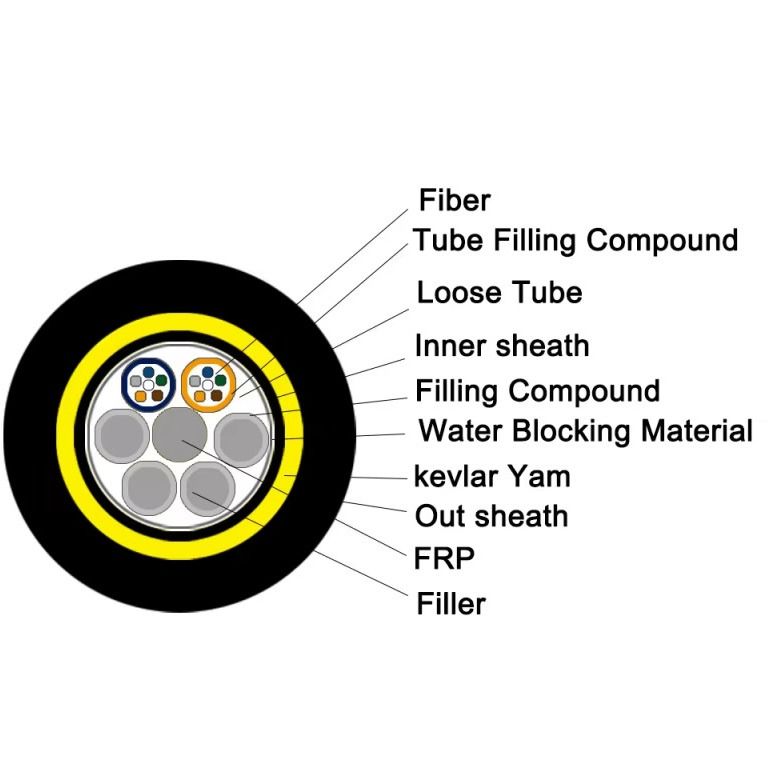

ADSS Cable Structure and Design



ADSS cable adopts a loose tube stranded construction for reliable fiber protection. The optical fibers, 250μm, are housed in loose tubes made from high-modulus plastic, providing excellent mechanical strength and durability.

Each tube is filled with a water-blocking gel, preventing moisture ingress and protecting fibers from long-term water damage. The tubes and fillers are stranded around a central FRP (Fiber Reinforced Plastic) strength member, creating a compact and round cable core that is completely non-metallic, safe for use near power lines.

The cable core is filled with filling compound for additional water blocking, then covered with a thin PE (polyethylene) inner sheath to provide a smooth and stable structure. A stranded layer of aramid yarns is applied over the inner sheath, offering outstanding tensile strength and resistance to mechanical stress. Finally, the cable is completed with either a PE outer sheath for general outdoor use or an AT (anti-tracking) outer sheath for installation in high-voltage environments (≥110 kV).



Additional Benefits

  • Dielectric Design: No metallic elements, eliminating grounding requirements.

  • Long Service Life: Excellent UV resistance and weatherproof performance.

  • Lightweight and Easy to Install: Self-supporting design reduces installation cost and time.

  • Customizable: Available in various fiber counts (up to 288 cores) and sheath materials to suit different span lengths and project needs.

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 0

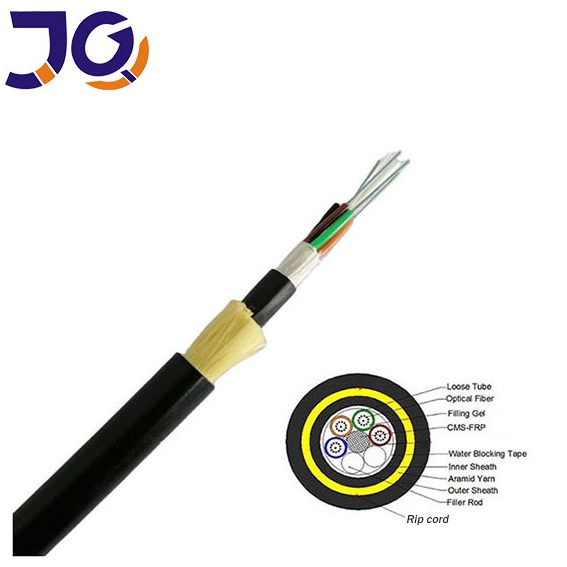

Cable Structure

  • PE Outer Jacket: Double-jacket design for enhanced durability and weather resistance

  • FRP Central Strength Member: Provides stable support and maintains cable shape

  • Rip Cord: Easy and quick sheath removal during installation

  • Fiber Jelly Filling: Water-blocking compound for moisture protection

  • Loose Tube: Holds fibers securely and allows free movement to minimize stress

  • Optical Fibers: High-quality single-mode or multi-mode fibers

  • Aramid Yarns: High tensile strength to withstand mechanical load

Key Characteristics

  • Low Attenuation and Dispersion: Stable transmission performance even under changing environments

  • Strong Mechanical Properties: Withstands tension, crush, and impact for reliable long-term use

  • Excellent Flexibility: Good bending radius, easy to route and install

  • Compact Design: Small outer diameter, lightweight, and space-saving construction

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 1

Application:

* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.

Specification:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 2

Company:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 3All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 4

WHY CHOOSE US:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 5

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 6

Certification:

All Dielectric Self Supporting ADSS Fiber Optic Cable 48 96 Core G652D Outdoor Aerial Non Armored Double Jacket 7

FAQ



1. Who Are We
We are a professional fiber optic cable manufacturer based in Guangdong China since 2017 Our products are exported to Africa South America Western Europe the Middle East Southeast Asia and South Asia We have a team of 11 to 50 experienced staff



2. How Do We Ensure Quality

  • Pre production samples are provided for approval before mass production

  • Every order undergoes strict final inspection before shipment

3. What Can You Buy From Us
Fiber Optic Cable FTTH Drop Cable Indoor and Outdoor Communication Cables and related accessories



4. What Services Do We Offer

  • Delivery Terms: FOB EXW

  • Payment Options: T T L C D P D A Credit Card PayPal Western Union Cash

  • Currencies: USD CNY

  • Languages: English Chinese


We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
