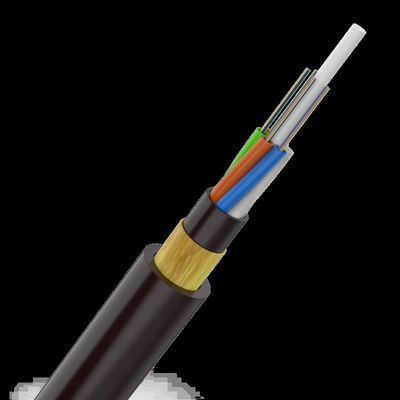

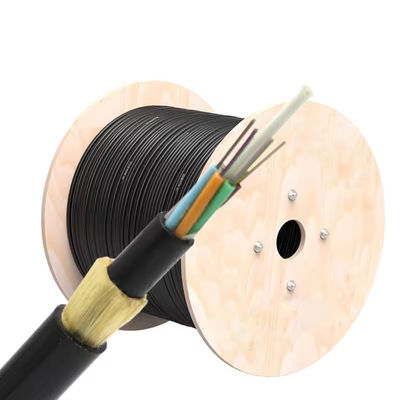

24 48 60 Core ADSS Fiber Optic Cable Double Jacket Outdoor Aerial Self Supporting Cable
Product Features
Double jacket ADSS structure with FRP strength member
Lightweight design reduces wind and ice load
Aramid yarn reinforcement for high tensile strength
Waterproof loose tube structure for reliable fiber protection
Application Scenarios
Power line and telecom pole aerial installation
Long-span overhead fiber networks (100–400 m)
Backbone and access communication networks
Harsh outdoor and high-voltage environments
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Data
|
Span : 100m |
Cable type |
60core Double Jacket ADSS |
|
structural parameter |
Central strength components : FRP |
Diameter : 2.1mm |
|
Loose tube (jelly filled ) |
Outer diameter :1.8mm |
|
|
Inner sheath PE |
Thickness : 0.9mm |
|
|
outer sheath PE |
Thickness :1.8mm |
|
|
Technical parameter |
outer diameter of Cable |
12.3mm |
|
cable cross-sectional area |
95.03 mm2 |
|
|
Fiber model |
G.652D |
|
|
Weight of cable |
150kg/km |
|
|
Rated tensile strength (RTS) |
10 kn |
|
|
Minmum allowed tension(MAT) |
4kn |
|
|
EDS |
3.2kn |
|
|
E-modulus |
12.1 kn/mm2 |
|
|
Coefficient of thermal expansion |
1.9 10-6/°C |
|
|
Cruss resistance |
Long term :1100 n/100mm |
|
|
short term:2200 n/100mm |
||
|
Permission bent radius |
Long term (when running) 220 mm |
|
|
Short term (when laying) 360 mm |
Structure and Technical Specifications ADSS-DJ(50-500m Span)
|
Ref.Outer Diameter (mm) |
Ref.Weight kg/km) |
Rec.DailyMax. Working Tension(kN) |
Max Allowable Working Tension [kN) |
Break Strength (kN) |
Strength Member CSA. (kN/mm2) |
Modulusof Elasticity CSA kNmm2)[ |
Heat Expansion Coefficient (X10-6/K) |
SuitableSpan Meter ABICP |
||||
|
PE |
AT |
|
||||||||||
|
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
|
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
|
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
|
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
|
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
|
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
|
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
|
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
|
15.5 |
190 |
204 |
9.0 |
26 |
|60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
Product Show
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Package Detail
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
FAQ – 60 Core Double Jacket ADSS Fiber Optic Cable
Q1: What is this ADSS cable mainly used for?
A: It is designed for aerial installation on power poles and telecom towers for long-distance outdoor communication.
Q2: What is the typical span length?
A: The cable supports span lengths of 100 m, 200 m, 300 m, and up to 400 m depending on installation conditions.
Q3: Does the cable require power shutdown during installation?
A: No, ADSS cables can be installed on power lines without shutting down electricity.
Q4: What is the expected service life of the cable?
A: The designed lifespan is about 30 years under normal outdoor conditions.
Q5: Do you provide customized lengths or OEM service?
A: Yes, we support OEM customization including cable length, packaging, and logo printing.
