Outdoor GYFTY Fiber Optic Cable 12 24 48 Core Non Metallic FRP Strength Member for Aerial and Duct Installation
Key Features

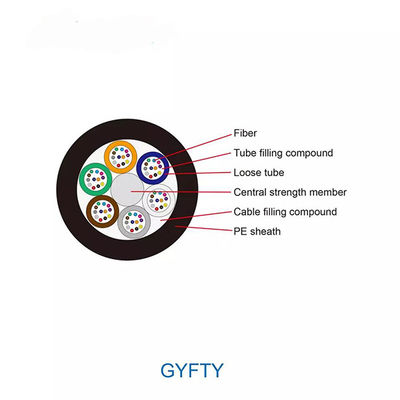

GYFTY fiber optic cable features a non-metallic FRP central strength member and gel-filled loose tube structure for reliable outdoor performance. The lightweight design provides strong tensile resistance and excellent temperature stability, while the water-blocking construction protects fibers from moisture and environmental damage. The durable PE outer sheath ensures long-term operation in harsh outdoor conditions and eliminates electromagnetic interference.
Applications
Widely used for aerial and duct installations in telecom networks, backbone transmission lines, and access networks. Suitable for long-distance communication systems, LAN connections, and transmission of voice, data, video, and multimedia services.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 |
10
|
20
|
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Detail product pictures

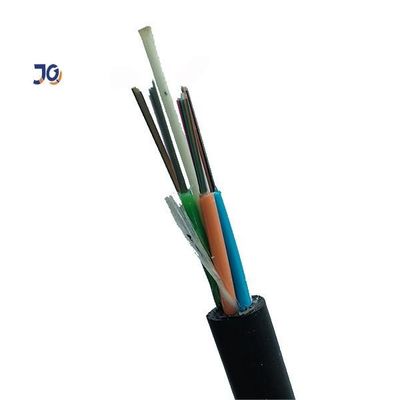

Picture shows about the GYFTY-48 C
FAQ
What is GYFTY fiber optic cable used for
GYFTY cable is mainly used for outdoor aerial and duct communication networks.
What fiber types are available for GYFTY cable
It supports single mode and multi mode optical fibers.
Why does GYFTY cable use an FRP strength member
FRP provides high tensile strength and eliminates electromagnetic interference.
Is GYFTY cable suitable for harsh outdoor environments
Yes the PE outer sheath protects against UV moisture and temperature changes.
What core counts are commonly available for GYFTY cable
Common options include 12 24 and 48 core configurations.
