ASU Mini ADSS Aerial Fiber Optic Cable 6–12 Core Single Mode Long Span Outdoor Cable
Features
Applications
| Item | Details |
|---|---|
| Fiber Count | 6 / 12 Cores |
| Fiber Type | Single Mode G652D or G657A1 |
| Cable Structure | Unitube Self Supporting |
| Strength Member | Aramid Yarn |
| Outer Sheath | UV Resistant PE |
| Span Length | 80–120 m |
| Cable Diameter | Approx. 6–8 mm |
| Tensile Strength | ≥ 1500 N |
| Crush Resistance | ≥ 1000 N / 100 mm |
| Operating Temperature | −40°C to +70°C |
| Installation Method | Aerial Self Supporting |
| Application | FTTH / FTTx / Telecom Networks |

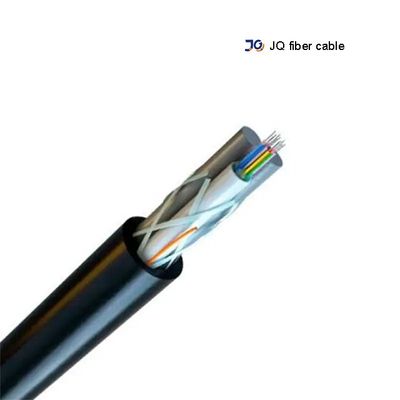

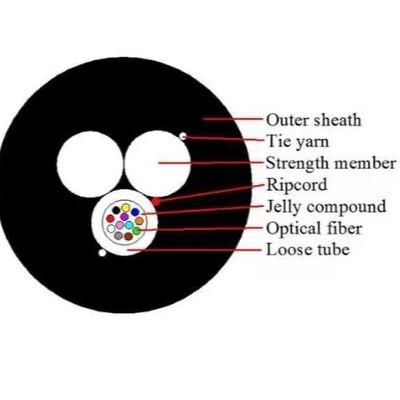

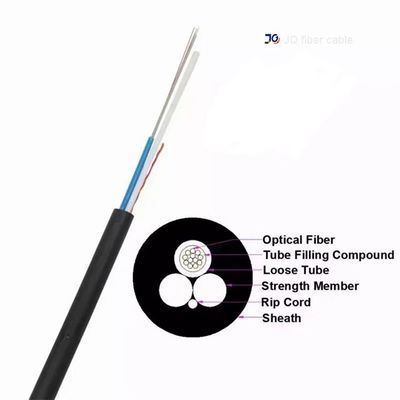

Structure
Fiber Type: 2–12 core single-mode fibers, compliant with G652D / G657A1 / G657A2
Cable Design: Central loose tube filled with water-blocking gel for moisture protection
Fiber Brand: Premium YOFC fibers for stable optical performance
Armor: All-dielectric mini ADSS construction, non-armored for lightweight installation
Strength Member: Dual FRP rods to enhance tensile strength and span capability
Outer Sheath: Black UV- and moisture-resistant PE jacket for reliable outdoor use
