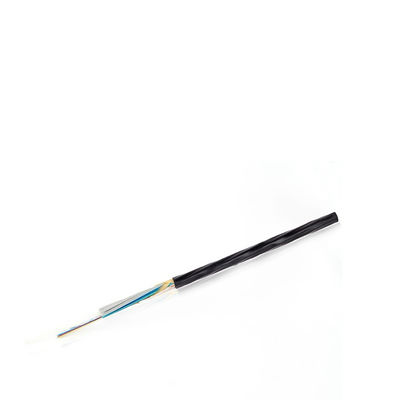

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Micro Duct Cable
Product Introduction:

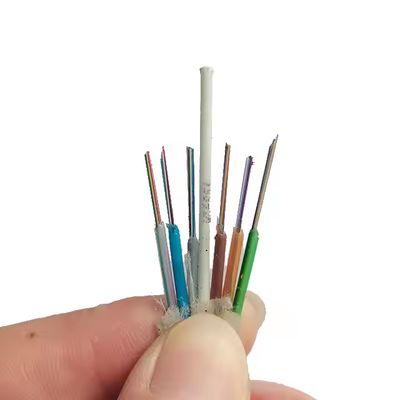

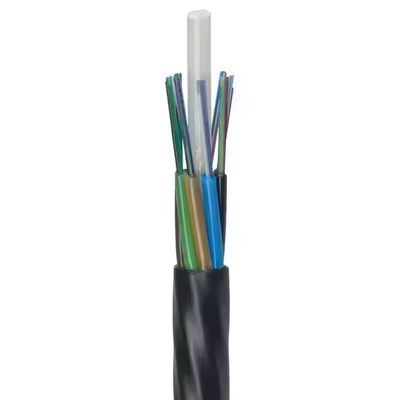

GCYFY air blown fiber micro cable features a loose tube stranded structure with non-metallic strength member, designed for efficient air blowing installation in micro duct networks.
Key Features:
Applications:
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
• Transport/storage temperature: -40℃ to +70℃
Cable Parameters
|
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
| 12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Delivery Length
• Standard length: 4,000m; other lengths are also available.
