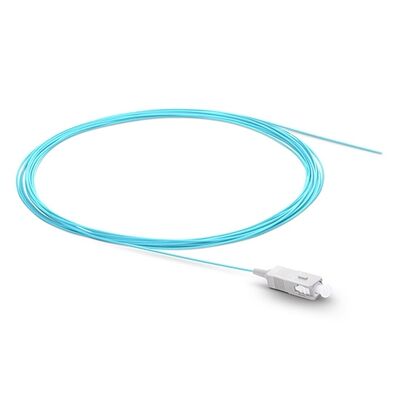

12 Core SC UPC Fiber Optic Pigtail Multimode 0.9mm FTTH Cable
Product Introduction:
12 core SC UPC fiber optic pigtail is designed for fiber termination and splicing, providing stable and low-loss connections in telecom and data networks.
Key Features:
SC UPC connectors with low insertion loss
Multimode fiber 50/125 or 62.5/125 optional
0.9mm compact cable design
PVC or LSZH jacket for safety
100% factory tested for performance
Multiple core counts and connector types available
Applications:
Optical Characteristics
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | oM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable oD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| nti-tensile Force (N) | >70 | ||||
| remperature Range (c) | -40r+80 | ||||
