| Số lượng đặt hàng tối thiểu : | 1km | chi tiết đóng gói : | Xuất hộp hoạt hình |
|---|---|---|---|
| Thời gian giao hàng : | 5-8 NGÀY LÀM VIỆC | Điều khoản thanh toán : | Western Union, T/T, L/C, Alipay |
| Khả năng cung cấp : | 1000 chiếc mỗi ngày |
| Nguồn gốc: | Quảng Châu, Trung Quốc | Hàng hiệu: | Jiqian/Customize/ OEM |
|---|---|---|---|
| Chứng nhận: | ISO 9001/CE/FCC/ROHS | Số mô hình: | Dây vá SC-LC |
|
Thông tin chi tiết |
|||
| Loại kết nối: | SC-LC hoặc lai | Chiều dài: | 1m 2m 3m hoặc tùy chỉnh |
|---|---|---|---|
| Vật liệu: | PVC/LSZH | Màu sắc: | Màu vàng |
| Mục: | Dây vá sợi quang | Độ lặp lại: | ≤ 0,2 dB |
| Số lượng sợi: | Đơn giản hoặc song công | Kiểm soát chất lượng: | Kiểm tra 100% trước khi vận chuyển |
| Làm nổi bật: | OS2 SC LC duplex fiber patch cord,single mode 9/125 fiber optic cable,SC to LC optical patch cord |
||
Mô tả sản phẩm
This SC-LC OS2 9/125µm single-mode patch cord provides stable, low-loss fiber connections for CATV systems, optical switches, terminal boxes and FTTH networks. Designed with durable PVC or LSZH jackets, the cable ensures reliable transmission, low insertion loss and high return loss. Available in simplex or duplex versions with SC, LC, ST or MTRJ connectors in PC/UPC/APC polishing.
Low insertion loss
High return loss
Excellent repeatability & interchangeability
Strong environmental stability
PVC or LSZH jacket options
Communication rooms & data centers
FTTH / FTTX networks
LAN & high-speed transmission systems
Fiber optic sensors (FOS)
Optical communication equipment connections
Optical Characteristics
| Mode | SM | MM | |
| Polish | UPC | APC | APC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB(1000 times mating) | ||
| Tensile Strengh | >10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB(+25+65 93 R.H.100 hours) | ||
Technical Data
|
Type |
Standard,Master |
|

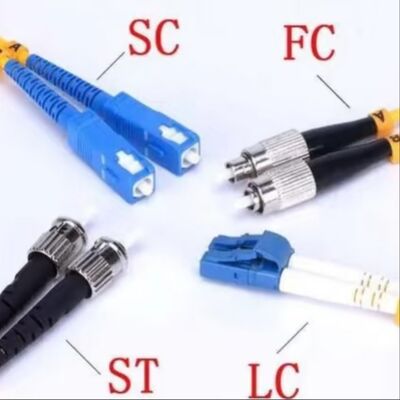

Style |
LC,SC,ST,FC.MU,DIN,D4,MPO,SC APC,FC/IAPC,LCIAPC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125 (Multimode) OM2&OM1 50/125,10G(Multimode)OM3 |
|
Cable |
Simplex,Duplex Φ3.0mm,Φ20mm,Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°&6°) |
|
Insertion Loss |
≤0.1dB(For Singlemode Master) ≤0.25dB(ForSinglemodeStandard) ≤0.25dB(ForMultimode) Tested by JDSRM3750 |
|
ReturnLose (Singlemode) |
UPC≥50dB SPC≥55dB APC≥60dB(typ.65dB) Tested by JDSRM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C° to 850 C° |
|
GeometryRequirement (Singlemode) |
Ferrule Endface Radius 7mm≤R≤12mm(For APC) 10mm≤R≤25mm(For Standard) Apex Offset≤30μm(For Master) Apex Offset≤50μm(For Standard) Under cut-50nmSU≤50nm Tested by DORCZX-1 |
Recommed Products
FAQ
1. Are you a trading company or manufacturer?
We are a real manufacturer with 10 years of experience, specializing in the research, development and production of fiber optic cables, FTTH drop cables, and patch cords. Our factory is located in Guangzhou, China. Welcome to visit us!
2. How about your product quality?
All fibers are 100% tested before delivery.
After price confirmation, free samples can be provided—you only need to cover the freight.
3. Do you accept small orders?
Yes, small orders are welcome. We support new customer projects because we know business always starts from small orders.
4. What is the lead time?
Usually 3–7 working days depending on order quantity.
We will arrange production and shipment as soon as payment is received.
