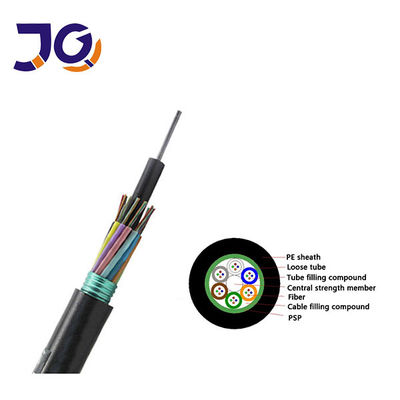

GYTS aerial fiber optic cable features single mode or multimode fibers placed in hydrolysis-resistant loose tubes filled with water-resistant compound.
Tubes and fillers are stranded around a central strength member to form a compact cable core. PSP steel tape provides crush resistance and moisture protection.
The cable is finished with a durable PE outer sheath, ensuring excellent watertight performance for aerial installation.
Excellent mechanical strength and temperature performance
Water-resistant high-strength loose tube
Fiber protected by special filling compound
Compact structure prevents tube shrinkage
UV-resistant PE jacket for outdoor durability
Central steel strength member for added support
Full core filling for moisture protection
APL moisture barrier for enhanced waterproof performance
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.8 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.7 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 11.3 | 140 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Product Show
Application
Suitable for external application in duct and aerial
Delivery&Payment
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer with 10 years of experience, based in Guangzhou. Factory visits are welcome.
2. How do you ensure quality?
All products are fully tested before shipment. Free samples are available after price confirmation.
3. Do you accept small orders?
Yes, trial and small orders are supported.
4. What is your delivery time?
Usually 3–7 working days, depending on order quantity.
5. Do you offer OEM service?
Yes, logo printing and customization are available.
