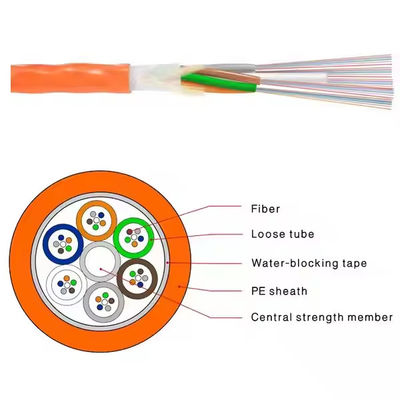

Stranded Air Blown Micro Duct Fiber Cable 96 Core GCYFY G652D High Density Network Cable
Air-blown installation for fast and cost-effective deployment
Stranded loose tube structure for strong fiber protection
Non-metallic design, lightweight and corrosion resistant
Compact size for efficient duct space utilization
Supports easy network upgrade and expansion
FTTH feeder and drop cable connections
Metropolitan and backbone fiber networks
Micro duct and access network installations
Telecom, broadband, and smart city projects
Optical Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Fiber & Tube Color
Cable Parameters
|
Cores |
Cores/tube |
FRP diameter (mm) |
Sheath thickness (mm) |
Approx. overall diameter (mm) |
Approx. weight (kg/km) |
| 12 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 24 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 48 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 72 | 12 | 1.5 | 0.5±0.1 | 5.6 | 24 |
| 96 | 12 | 2.5 | 0.5±0.1 | 6.6 | 38 |
Environmental Characteristics
| Working temperature | -35oC ~ +70oC |
| Storage and transportation temperature | -35oC~ +70oC |
| Installation temperature | -15oC~ +60oC |
