Submarine Optical Fiber Cable GYTA33
GYTA33 is a double armored loose tube fiber optic cable designed for direct burial and underwater installation. Full cross-section water-blocking structure ensures excellent moisture resistance. Loose tubes filled with special jelly protect fibers from stress. Phosphate steel central strength member offers high modulus and corrosion resistance. Double-layer corrugated aluminum tape with steel wire armor provides superior tensile, crush, and impact performance, suitable for harsh submarine and underground environments.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
Product Construction

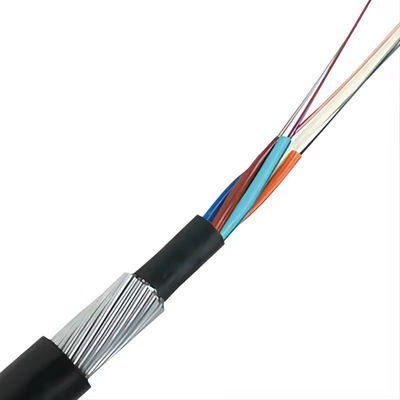

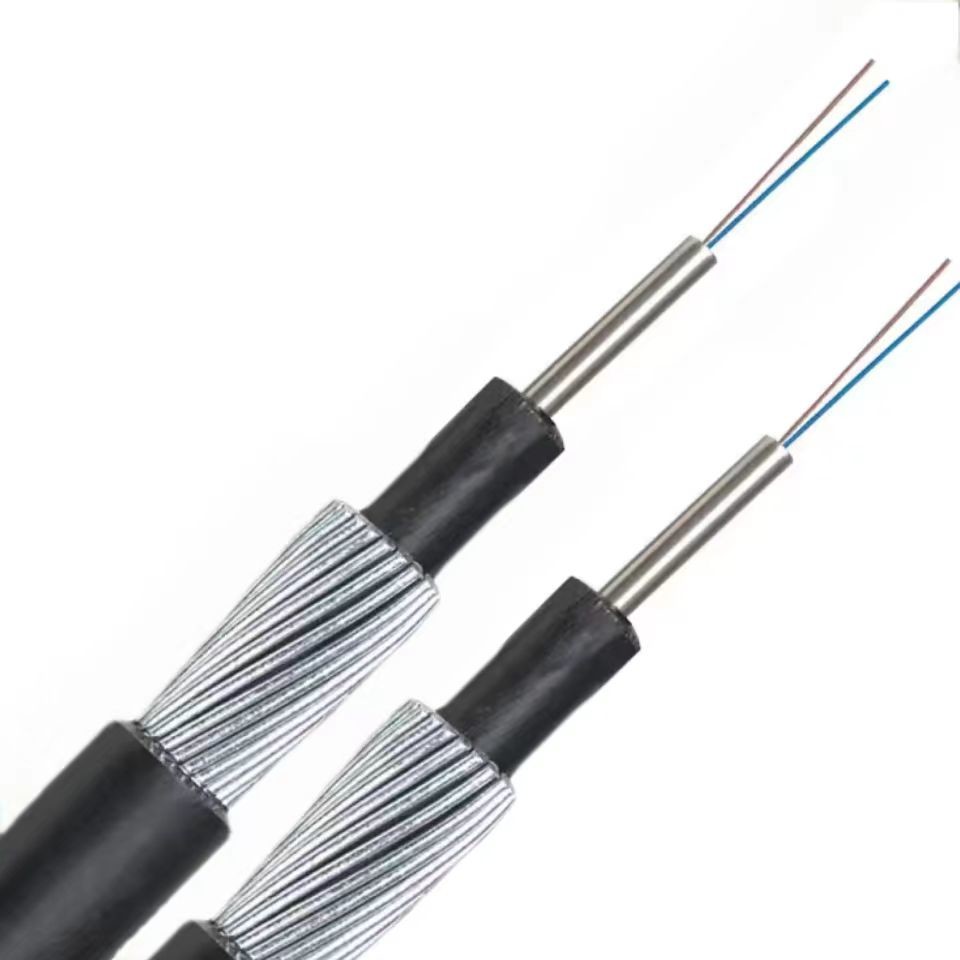

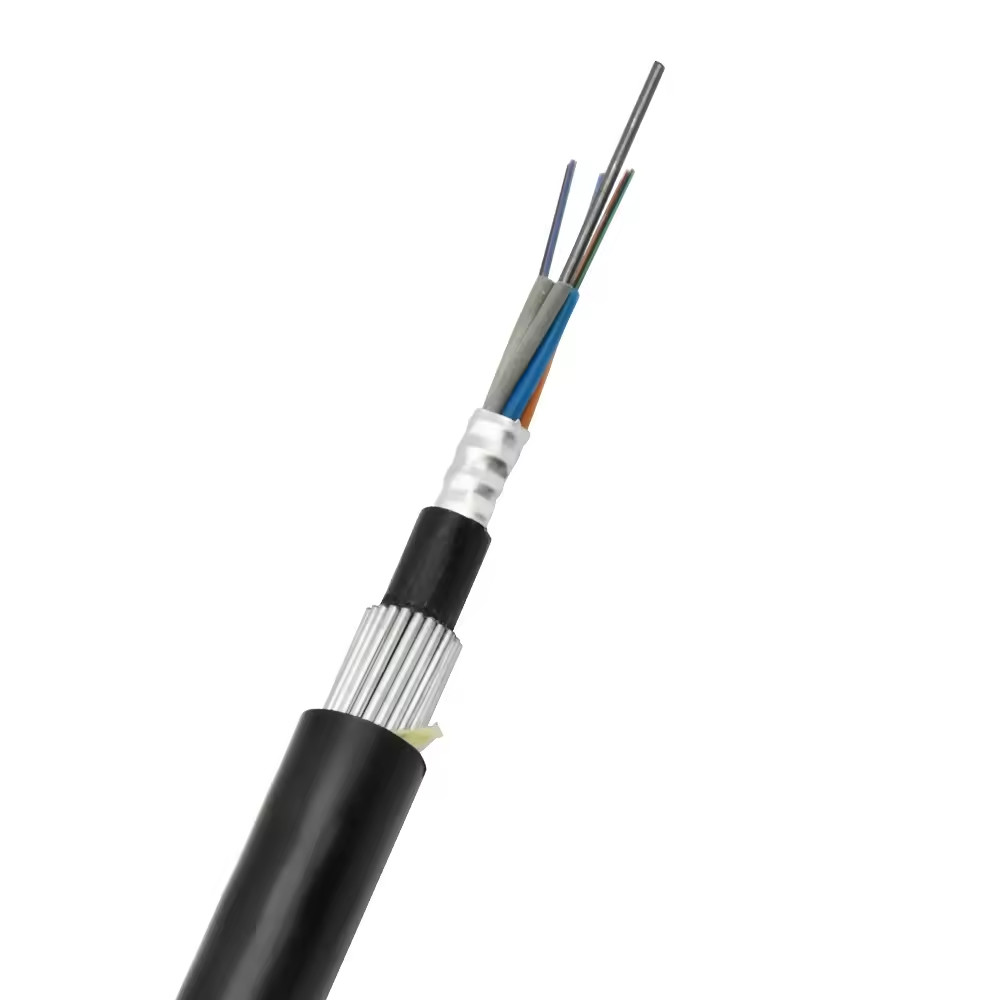

Cable Picture
Packing
1/2/3/4km or customized length export wooden drum
professional, environmentally friendly, convenient and efficient packaging services will be provided.
