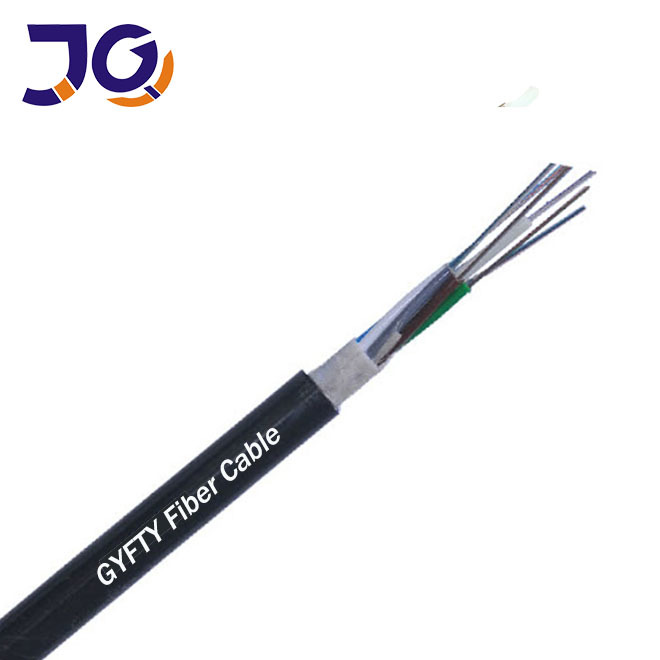

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY

Liên hệ với bây giờ

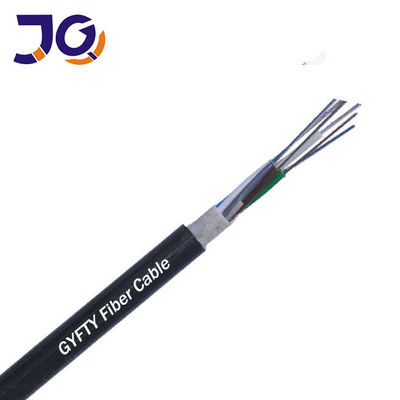

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY

Số lượng đặt hàng tối thiểu :	1km	chi tiết đóng gói :	Trống gỗ
Thời gian giao hàng :	Thông thường 5-7 ngày, nó phụ thuộc vào số lượng đặt hàng	Điều khoản thanh toán :	L/C, T/T, Liên minh phương Tây, Alipay
Khả năng cung cấp :	4500KM mỗi tháng

Nguồn gốc:	Trung Quốc	Hàng hiệu:	Jiqian
Chứng nhận:	ISO 9001/CE/FCC/	Số mô hình:	GYFTY

Thông tin chi tiết
Nguồn gốc:	Quảng Châu, Trung Quốc	Hàng hiệu:	Jiqian
Số lượng dây dẫn:	≥ 10	Thành viên sức mạnh:	FRP
Nhà sản xuất:	Đúng	Nhiệt độ bảo quản/hoạt động::	-40 đến +70 ° C
Ứng dụng:	DUCT/Ngầm	OEM:	Đúng
Loại cáp:	cáp quang cách điện	Số lượng sợi:	Lõi 4-288
Làm nổi bật:	underground fiber optic cable 144 core , aerial fiber optic cable GYFTY , 48 core underground fiber cable

Mô tả sản phẩm

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY

Features:

1.Adopt "SZ" bidirectional layer twisting technology

2.Water-blocking grease filling in each process, full-section water-blocking

3.Steel (aluminum) belts have reliable lap bonding, high strength, and will not crack when torsionally twisted

4.Stable fiber excess length control

5.After the cable is completed, the additional attenuation of the optical fiber is close to zero and the dispersion value does not change.

6.Excellent environmental performance, applicable temperature range is -10℃~+70℃

7.Suitable for overhead, pipeline, direct burial and other laying methods

Applicable laying method:

Underground, overhead

Technical Parameters:

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
24	8.8	65	1500	600	1000	300	20D	10D	-40+70
36	8.8	65	1500	600	1000	300	20D	10D	-40+70
48	9.0	65	1500	600	1000	300	20D	10D	-40+70
60	9.2	75	1500	600	1000	300	20D	10D	-40+70
72	9.5	75	1500	600	1000	300	20D	10D	-40+70
96	11.0	103	1500	600	1000	300	20D	10D	-40+70
144	13.8	160	1500	600	1000	300	20D	10D	-40+70

Performance characteristics:

No metal structure, excellent anti-electromagnetic and lightning performance, anti-static

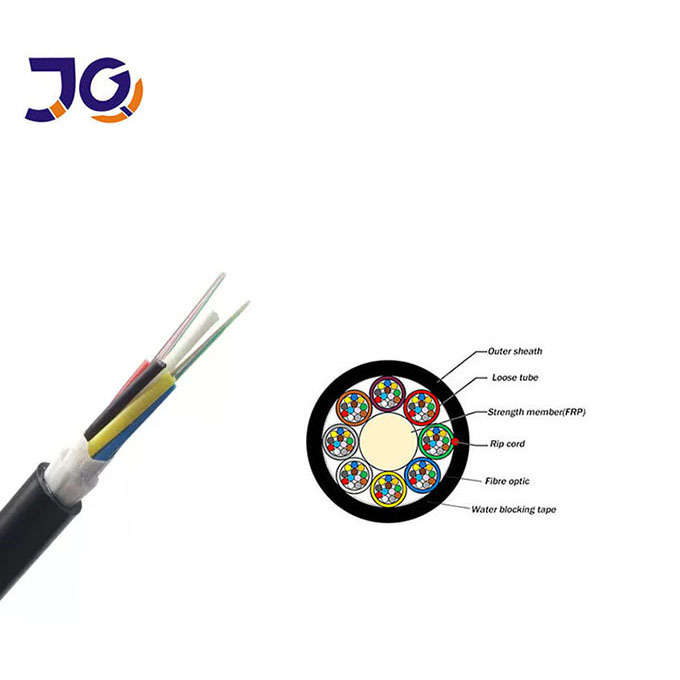

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 1

Fiber Properties

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.35 dB/km ≤0.32 dB/km ≤0.21 dB/km ≤0.30 dB/km
Point discontinuity	≤ 0.05 dB
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.093 ps/(nm².km)
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km)
PMD	≤0.2 ps/km½
Mode field diameter @ 1310 nm	9.2±0.4 um
Core / Clad concentricity error	≤0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤1.0%
Primary coating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm	≤ 0.1 dB/km

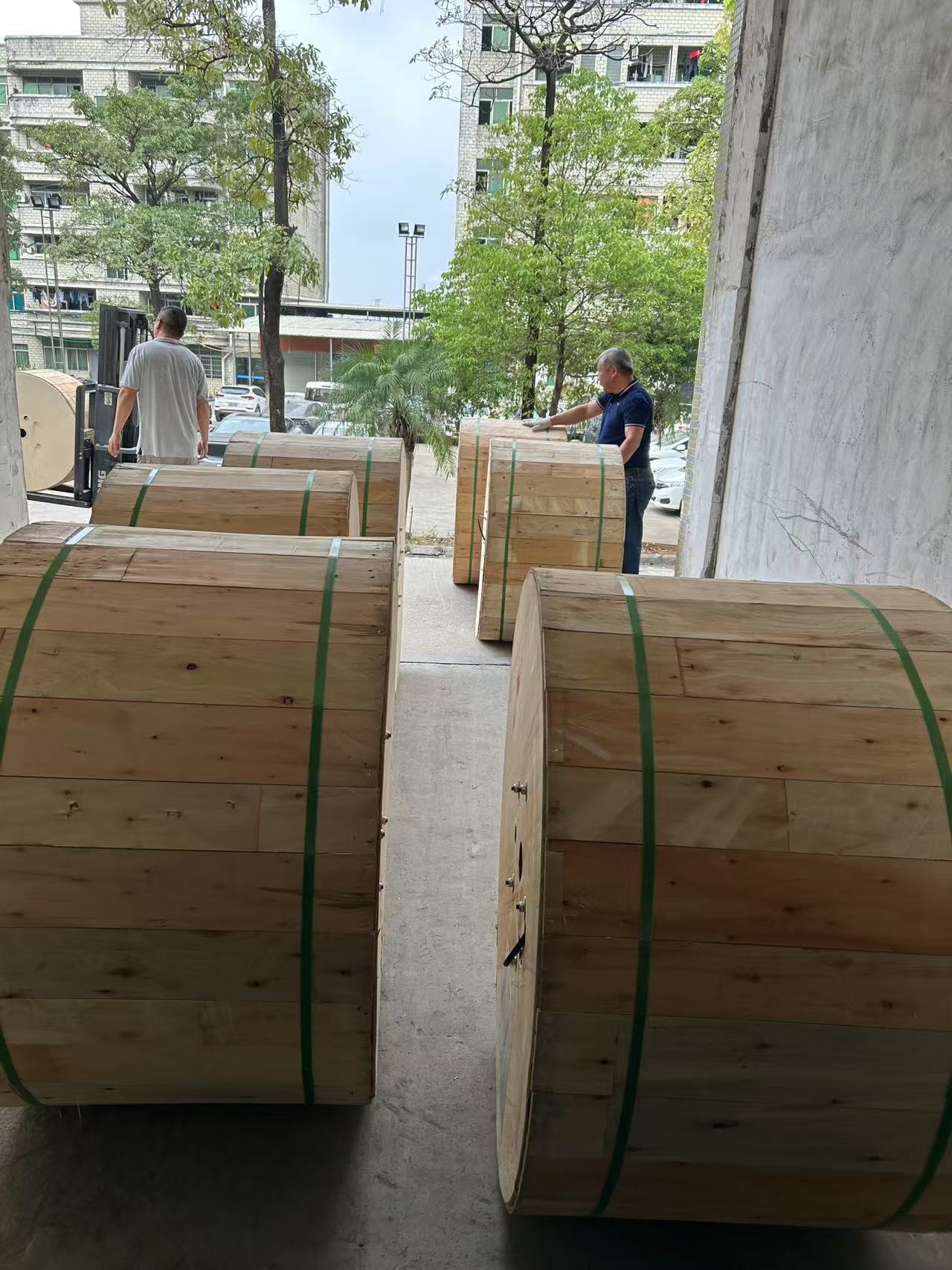

Packing & shipping:

Packing:Plywood 3/4/5 drum

Shipping:by sea/road

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 3

Company profile:

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 12years history.

2.What is your fiber brand ?
YOFC/Fiberhome

3.Do you provide samples?is it free or charged? Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your cable life expectancy?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days,it depends on order quantity

8.What is your payment way?
T/T, L/C, Western Union,Paypal

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
