| Số lượng đặt hàng tối thiểu : | 1000m | chi tiết đóng gói : | Trống gỗ |
|---|---|---|---|
| Thời gian giao hàng : | 2-4 ngày | Điều khoản thanh toán : | Liên minh phương Tây, Moneygram, T/T, L/C |
| Khả năng cung cấp : | 100km mỗi ngày |
| Nguồn gốc: | Trung Quốc | Hàng hiệu: | Jiqian/Customize/ OEM |
|---|---|---|---|
| Chứng nhận: | ISO9001 ROHS CE-EMC FCC SDOC | Số mô hình: | Gjfjv |
|
Thông tin chi tiết |
|||
| Loại sợi: | OM3/G652D/G657A1/G655 | OEM: | Có sẵn |
|---|---|---|---|
| Nhiệt độ hoạt động: | -20~70°C | Thành viên sức mạnh trung tâm: | Sợi aramid/sợi kevlar |
| Vật liệu:: | PVC/LSZH | Số lượng sợi: | 12 24 48 96 lõi |
| Thương hiệu sợi: | Yofc/fiberhome/fujikura/corning | Ứng dụng: | Truyền thông/Trung tâm dữ liệu/FTTH |
| Làm nổi bật: | 12 core indoor fiber optic cable,LSZH singlemode fiber cable,indoor distribution fiber optic cable |
||
Mô tả sản phẩm
Indoor 12 Core Multimode Distribution Tight-Buffered Fiber Optic Cable (GJFJH / GJFJV)

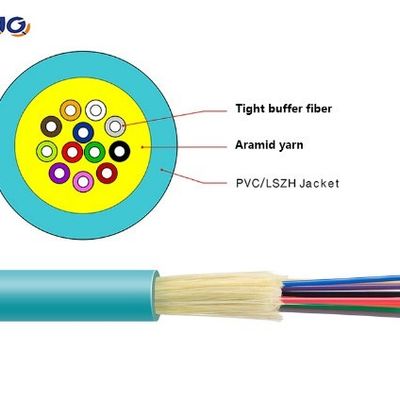

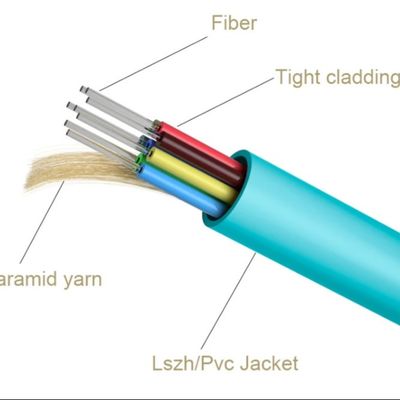

GJFJV indoor distribution cable uses 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with a layer of aramid yarn for added tensile strength and then jacketed with either PVC or LSZH, depending on installation requirements.
The tight-buffer fibers are produced using high-precision buffering technology, available in 600μm or 900μm diameters. High-quality optical fibers, specialized production equipment, and strict process control ensure excellent mechanical stability and reliable transmission performance.
Excellent mechanical and environmental performance
Flame-retardant design meets industry standards
Reliable mechanical strength for indoor/outdoor use
Soft, flexible, and easy to splice
High-capacity data transmission
|
No. of cable
|
8
|
12
|
24
|
36
|
48
|
|
|
Fiber Model
|
OM3
|
|||||
|
Tight lines
|
Material
|
PVC/LSZH
|
||||
|
Thickness(±0.03)mm
|
0.32
|
|||||
|
Diameter(±0.06)mm
|
0.9
|
|||||
|
Center Strength Member
|
Material
|
FRP
|
||||
|
Diameter(±0.1)mm
|
—
|
—
|
—
|
0.5
|
0.5
|
|
|
Strength Member
|
Material
|
Aramid Yarn
|
||||
|
Inner Sheath
|
Material
|
PVC/LSZH
|
||||
|
Diameter(±0.1)mm
|
—
|
—
|
—
|
0.8
|
0.8
|
|
|
Colour
|
Aqua
|
|||||
|
Outer Sheath
|
Material
|
PVC
|
||||
|
Thickness(±0.1)mm
|
0.9
|
1.0
|
1.0
|
1.5
|
1.5
|
|
|
Colour
|
Aqua
|
|||||
|
Cable Diameter(±0.2)mm
|
5.8
|
6.2
|
8.5
|
15.1
|
15.1
|
|
|
Cable Wetght(±5)kg/km
|
31
|
41
|
60
|
238
|
235
|
|
|
Attenuation
|
850nm
|
dB/km
|
≤2.5
|
||||
|
1300nm
|
≤0.7
|
||||||
|
Bandwidth
|
850nm
|
MHz.km
|
≥3500
|
||||
|
1300nm
|
≥500
|
||||||
|
Allowable Tensile Strength
|
Short Term
|
N
|
660
|
660
|
660
|
1320
|
1320
|
|
Long Term
|
200
|
200
|
200
|
660
|
660
|
||
|
Allowable Crush Resistance
|
Short Term
|
N/100mm
|
1000
|
1000
|
1000
|
1500
|
1500
|
|
Long Term
|
200
|
200
|
200
|
300
|
300
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
|||||
|
Under Maximum Tension
|
20.0×Cable-φ
|
||||||
|
Temperature range
(℃)
|
Installation
|
-20~+60
|
|||||
|
Transport&Storage
|
-40~+70
|
||||||
|
Operation
|
-40~+70
|
||||||
Are you a real manufacturer?
Yes, we are a professional factory in Guangzhou, China. Welcome to visit us!
What is your minimum order quantity?
1 KM. Trial orders and new projects are supported.
Can I get a sample?
Yes, free samples are available. You only need to cover express shipping.
What payment methods do you accept?
L/C, T/T, Western Union, and PayPal are all accepted.
What is the delivery time?
Usually 3–7 working days, depending on order quantity.
Can you supply customized products and logo?
Yes, we provide OEM & ODM services. Please contact us with your requirements.
