| Số lượng đặt hàng tối thiểu : | 1km | chi tiết đóng gói : | 2KM/Trống Gỗ |
|---|---|---|---|
| Thời gian giao hàng : | 5-8 ngày làm việc | Điều khoản thanh toán : | L/C, Western Union, T/T |
| Khả năng cung cấp : | 4500KM mỗi tháng |
| Nguồn gốc: | Quảng Châu Trung Quốc | Hàng hiệu: | JQ/OEM/Customize |
|---|---|---|---|
| Chứng nhận: | ISO9001 ROHS CE-EMC FCC SDOC | Số mô hình: | Gjfjv |
|
Thông tin chi tiết |
|||
| Tên: | Cáp quang trong nhà | Vỏ bọc bên ngoài: | PVC, PE, LSZH |
|---|---|---|---|
| Loại cáp: | sợi đệm chặt với sợi aramid | Nguồn gốc: | Quảng Châu Trung Quốc |
| sức mạnh: | Sợi Aramid | Màu sắc: | Cam, vàng, xanh |
| Cốt lõi: | 2-48Fiber | Loại sợi: | Multimode |
| Làm nổi bật: | 6 core indoor fiber optic cable,24 core GJFJV optical cable,high performance multi mode fiber |
||
Mô tả sản phẩm
ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi-purpose Distribution Fiber Optic Cable
Uses 600µm or 900µm flame-retardant tight buffer fibers as the optical medium, wrapped with aramid yarn for strength, and completed with PVC or LSZH jacket. High-quality fibers and precise manufacturing ensure excellent performance for indoor optical communication.
Characteristics
Optical Characteristics
|
|
|
G.652D |
50/125um |
625/125μm |
|
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
|
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
|
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHz-km |
2200MHz-km |
|
|
@1300nm |
|
21000MHz-km |
2600MHz-km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
|
≤1260nm |
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 | |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm | |||||
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV | ||||||||||
| Cable Count |
Outside Diameter |
Tight buffer Diameter |
Weight
|
Minimum allowable Tensile Strength(N) |
Minimum allowable (N/100mm) |
Minimum Bending |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
Application
1.Used in pigtails and patch cords
2.Used as interconnect lines of equipments.
3.Used in indoor and outdoor cabling, especially used as distribution cable
4.Used in optical connections in optical communication rooms and optical distribution frames
Product Detail

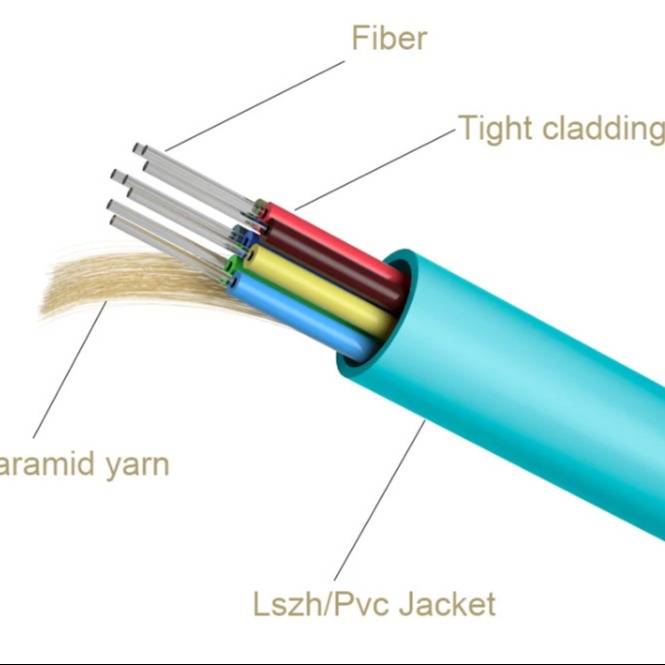

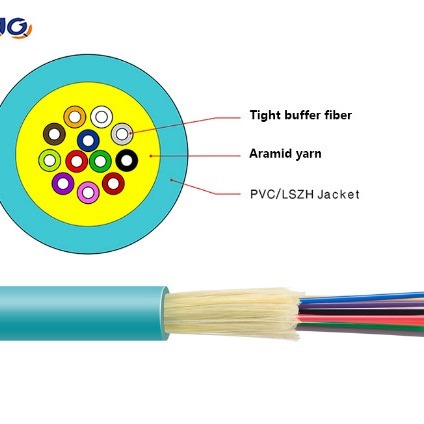

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.
Packing

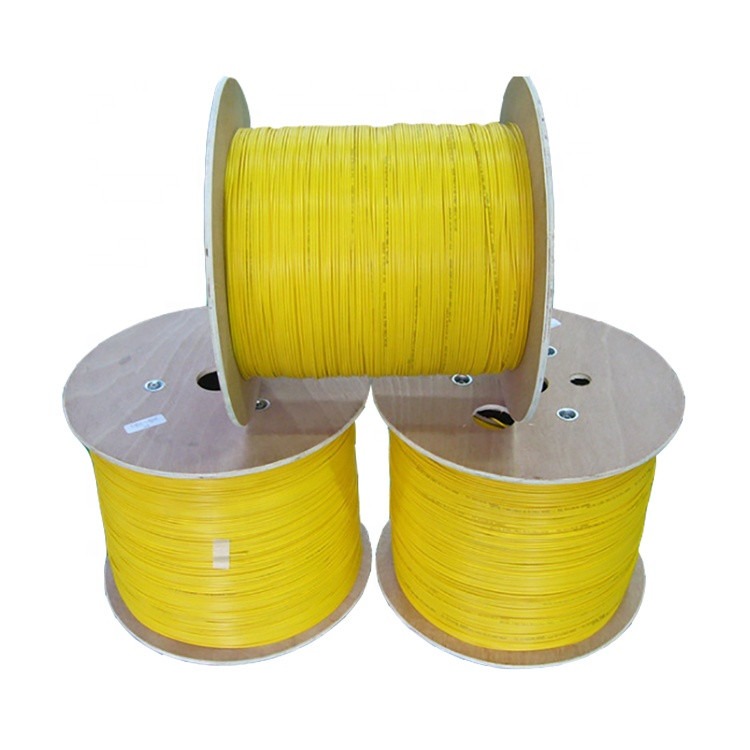

2km or customized length export wooden drum
FAQ – Fiber Optic Cable
Why Choose Us?
Professional manufacturer with low MOQ and free samples, stable high quality, fast solutions, and competitive pricing.
OEM/ODM Service?
Yes, we accept OEM and ODM.
Logo Printing?
Yes, logos can be printed on products or boxes.
Shipping Methods?
Delivery by sea, land, or air is available.
Payment Options?
LC, T/T, Western Union, Alipay accepted.
Delivery Time?
Usually 3–7 working days, depending on order quantity; we arrange shipment promptly after payment.
