Người liên hệ : JQ CABLE
Số điện thoại : +8618122383351
WhatsApp : +8618122383351
| Số lượng đặt hàng tối thiểu : | 1 km | chi tiết đóng gói : | Trống gỗ |
|---|---|---|---|
| Thời gian giao hàng : | 2-5 ngày | Điều khoản thanh toán : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Khả năng cung cấp : | 8000 km mỗi tháng |
| Nguồn gốc: | Quảng Đông, Trung Quốc | Hàng hiệu: | JQ/OEM/Customize |
|---|---|---|---|
| Chứng nhận: | CE/ISO9001/RoHS/FCC | Số mô hình: | Gyta |
|
Thông tin chi tiết |
|||
| Kiểu: | Cáp quang ngoài trời | Loại sợi: | G652D Chế độ đơn hoặc là yêu cầu của bạn |
|---|---|---|---|
| Số lượng sợi: | 2-144 lõi | Màu sắc: | tùy chỉnh |
| Ống: | Ống đa lỏng | Thành viên sức mạnh trung tâm: | Dây thép |
| Bọc thép: | Băng Al | Vỏ bọc bên ngoài: | PE hoặc như yêu cầu của bạn |
| Làm nổi bật: | GYTA armored fiber optic cable,144 core outdoor fiber cable,aerial duct fiber optic cable |
||
Mô tả sản phẩm
High Mechanical Strength: Excellent resistance to tensile stress, crushing, and environmental factors.
Reinforced Central Strength Member: Phosphatized steel wire core with optional PE coating for flexibility and corrosion resistance.
Superior Water-Blocking: Fully filled with water-blocking gel and compound to prevent water penetration.
Effective Moisture Protection: Aluminum tape with PE sheath provides a strong moisture and rust barrier.
Long Service Life: Reliable optical performance and durability for aerial and duct applications.
Wide Application: Ideal for telecom backbones, metropolitan networks, CATV systems, and high-speed data transmission.
Specification:
| item | value |
| Model Number | GYTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |

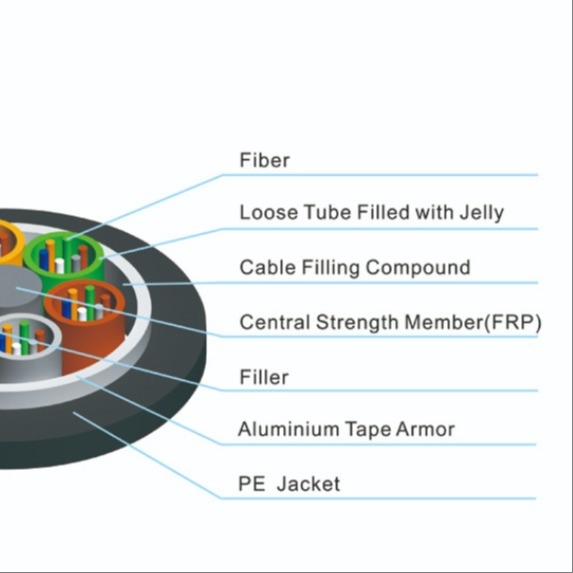

| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |
| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |
Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.
WHY CHOOSE US:
Certification:
1. Who are we?
We are a professional fiber optic cable manufacturer in Guangdong, China, established in 2017. Our main markets include Africa, South America, Western Europe, the Middle East, Southeast Asia, and South Asia. Our team has 11–50 employees.
2. How do we ensure product quality?
Pre-production samples provided.
Strict final inspections before shipment.
3. What products do we supply?
We offer Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Outdoor/Indoor Fiber Cables.
4. What services do we provide?
Delivery Terms: FOB, EXW
Payment Options: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash
Accepted Currencies: USD, CNY
Languages: English, Chinese
5. What is your MOQ?
Our MOQ is 1KM.
6. Can I request a sample?
Yes, free samples are available. You only need to cover shipping costs.
7. Do you accept OEM or ODM orders?
Yes, we support both OEM and ODM projects.
8. What is the delivery time?
Orders typically ship within 3–7 days after confirmation, depending on size and specifications.
